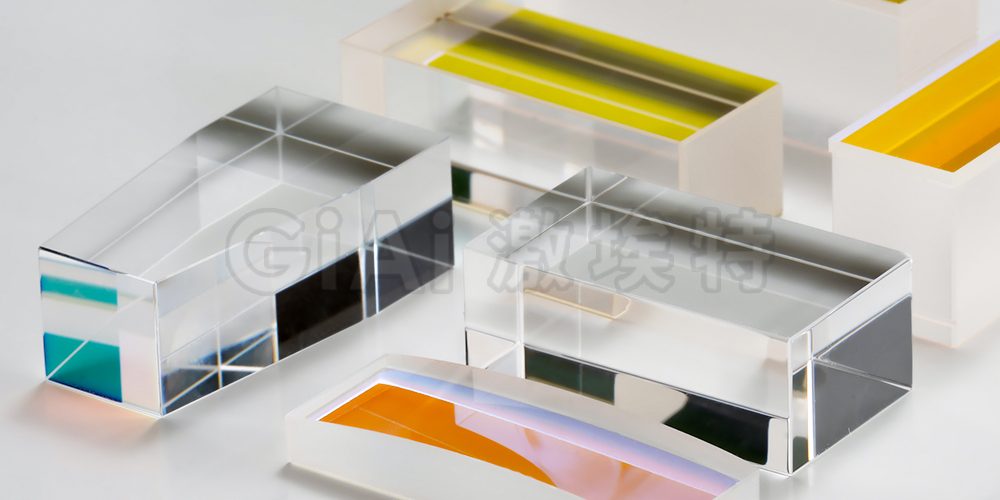

Optical prism, as an important component in the field of optics, plays an irreplaceable role in various optical instruments due to its diverse structures and functions. This article will explore in depth the classification of optical prisms and their unique role in various application scenarios.
Classification of optical prisms
1.Classification by properties and uses
Dispersion prism: The core function of this type of prism is to decompose composite light into a spectrum. For example, equilateral prisms (or equilateral dispersion prisms) and beam splitters use the difference in refractive index of light of different wavelengths in the prism to disperse the light by wavelength to form a spectrum.
Reflection prism: Reflection prisms are mainly used to change the propagation direction of light, thereby adjusting its imaging position. Right-angle prisms, roof prisms, pentagonal prisms, double reflection prisms and dove prisms are all typical reflection prisms. They change the direction of light through internal reflection and are widely used in optical instruments such as periscopes, telescopes, and microscopes.
2.Classification by structural characteristics
Right-angle prism: Its cross section is a right triangle, containing two right-angle faces and one inclined surface. Light is incident from one right-angle face, reflected by the inclined surface, and then emitted from the other right-angle face, achieving a 90-degree reversal.
Roof prism: On the basis of the right-angle prism, the inclined surface is divided into two mutually perpendicular surfaces to form a ridge shape. This prism can flip the image, swap the left and right parts of the image before emitting it, and is often used in instruments such as telescopes that need to flip the image.Pentagonal prism: It has five faces, one of which is a right angle. Light is incident from a right-angle face, and after two internal reflections, it is emitted from another right-angle face, and the emitted light is 90 degrees to the incident light. It is often used in camera viewfinders, image observation systems or measuring instruments.
Dove prism: A special reflecting prism that uses the critical angle principle to achieve total internal reflection. After the light passes through this prism, the image is reversed by 180°. At the same time, when the prism rotates about its optical axis, the rotation angle of the image is twice the rotation angle of the prism. This feature makes it suitable for applications that require image rotation.
Amici prism (also known as Amici prism): It consists of two triangular prisms, the first triangular prism is usually made of crown glass with medium dispersion, and the second is made of flint glass with high dispersion. It has dispersion function and is often used in spectrometers.
Rhombus prism: The cut surface is in the shape of a parallelogram, and the acute angle can be 45 degrees or any angle. After the light enters the prism, it will be reflected once and then emitted. When the prism rotates around the incident light, the direction of the emitted image does not rotate with the rotation of the prism. This feature makes it suitable for occasions where the pupil distance is matched in ophthalmic instruments.
Application exploration of optical prisms
Optical prisms have a wide range of applications in many fields. In the field of scientific research, dispersion prisms are used in spectrometers to decompose composite light into spectra for analysis of material composition and spectral research. Reflective prisms are widely used in optical instruments such as telescopes and microscopes to adjust the imaging position by changing the propagation direction of light.
In the military field, reflective prisms such as right-angle prisms and roof prisms are used in periscopes and sights to achieve long-distance observation and aiming. Pentaprisms are often used in military measuring instruments and reconnaissance equipment to provide accurate images and measurement data.
In the medical field, optical prisms are also used in ophthalmic instruments, such as pupil distance meters and corneal topographs. The characteristics of rhombus prisms make them play a key role in these instruments to ensure the accuracy and reliability of measurements.
In addition, with the development of science and technology, optical prisms are increasingly used in communications, aerospace, machine vision and other fields. For example, in optical communications, optical prisms are used for switching optical paths and shaping beams; in the aerospace field, optical prisms are used in navigation systems and remote sensing equipment; in the field of machine vision, optical prisms are used in image processing and imaging systems.
Conclusion
As an important component in the field of optics, optical prisms play an irreplaceable role in various optical instruments due to their diverse structures and functions. By gaining a deeper understanding of the classification and application scenarios of optical prisms, we can better utilize these components to meet the needs of different fields and promote the progress and development of science and technology. In the future, with the continuous innovation and development of optical technology, the application fields of optical prisms will become more extensive and in-depth.
