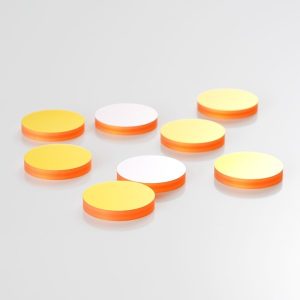

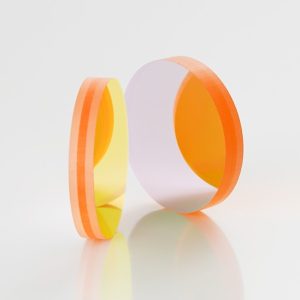

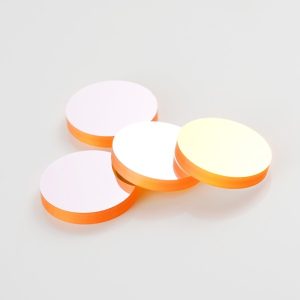

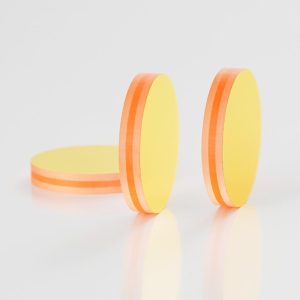

The medical BP590 bandpass filter is an optical filter developed for medical instrument applications. BP590 uses optical-grade glass, such as K9, BK7, B270, D263T, JGS1, etc., as well as colored glass, float glass, etc. It is made using all-dielectric hard film coating technology and dielectric interference principles to ensure that the optical performance of the filter is stable and efficient. It is mainly used to selectively pass a certain wavelength of light detected by some medical instruments, while preventing light outside this wavelength range from passing through.
Model:GND BP590 Bandpass Filter
Specifications: Customized
Material: Optical glass
Product Categories
Product indicators
Transmittance band: 550nm-630nm
Minimum transmittance: T>92%
Product size: customizable
Cut-off depth: T<0.1%
Transmittance wavelength characteristics (reference data)
Application Cases
Biochemical analyzer: used for optical measurement in the process of biochemical analysis.
Optical measuring instruments: such as spectrometers, spectrophotometers, etc., used to accurately measure the wavelength and intensity of light.
Enzyme labeler: In enzyme label analysis, filters are used to selectively transmit light of specific wavelengths to detect light signals generated by enzymatic reactions.
Biometrics: In biometrics, filters may be used to process optical signals of biometric information.
Infrared medical instruments: In infrared medical instruments, filters are used to isolate unnecessary infrared light and improve the measurement accuracy of the instrument.
Fluorescence analyzer: In fluorescence analysis, filters are used to selectively transmit light of specific wavelengths emitted by fluorescent substances.
Medical testing equipment: such as flow cytometers, PCR fluorescence analyzers, etc., filters play a vital role in these devices.
