In the field of optics, optical filters are endowed with unique optical properties through their special construction materials and film materials, and different optical filters have different actual performance. Today we will talk about a classification of cut-off filters, long-wave pass filters. Among various types of optical filters, long-pass filters are a widely used and widely used optical component.
What is a long-pass filter?

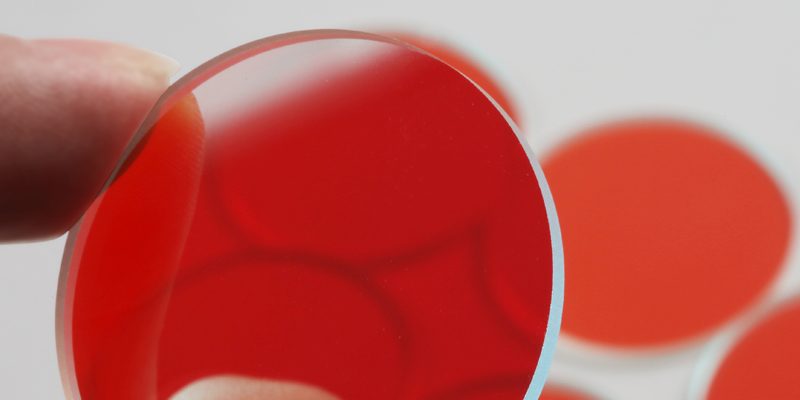

A long-pass filter is an optical filter that allows long-wave light of a specific wavelength to pass through and blocks shorter wavelengths. Its characteristic is that it cuts off short-wave light of a specific band and allows long-wave light of that specific band to be transmitted; that is, the point at which the filter starts to transmit light, wavelengths above the cut-off point will be transmitted, and wavelengths below the cut-off point will be reflected or absorbed.
For example, if the cut-off wavelength of a longpass filter is 500 nm, it will block light below 500 nm (such as ultraviolet or blue light) and transmit light above 500 nm (such as green, yellow, red, and infrared light).
Longpass filters are usually made of high-quality optical materials, such as optical glass, silicon, zinc selenide, etc., designed to provide high transmission efficiency and sharp cut-off transition. Longpass filters have physical properties such as high transmittance, extremely low loss, high stability, and low thermal expansion coefficient. These properties make longpass filters widely used in many fields, including optics, electronics, and biomedicine.
How do longpass filters work?
The function of longpass filters is based on the principles of “interference” and “absorption”. In interference-based filters, thin layers of dielectric materials are deposited on substrates to form coatings that selectively reflect or transmit specific wavelengths. In absorption-based filters, certain materials are used to absorb shorter wavelengths while allowing longer wavelengths to pass.
The performance of a longpass filter is often measured by its “optical density (OD)”, which represents how effectively it blocks unwanted wavelengths, and its transmission efficiency, which represents how well it transmits the desired wavelengths.
Applications of Longpass Filters
Longpass filters are used in a wide variety of industries and applications due to their ability to isolate specific wavelength ranges. Here are some of the most common applications:
- Fluorescence Microscopy
In fluorescence microscopy, longpass filters are used to separate emitted fluorescence from excitation light. For example, a longpass filter with a cutoff wavelength of 550 nm can block excitation light (such as blue or green) while allowing emitted fluorescence (such as red or orange) to pass through to the detector. - Spectroscopy
Longpass filters are essential in spectroscopy applications where specific wavelength ranges need to be isolated. They are often used in conjunction with other filters to analyze the composition of materials or study the interaction of light with matter. - Medical Imaging
In medical imaging systems, such as endoscopes or ophthalmic equipment, longpass filters help enhance image contrast by blocking unwanted shorter wavelengths (such as ultraviolet or blue light) that can cause glare or distortion. - Environmental Monitoring
Longpass filters are used in sensors and cameras for environmental monitoring, such as detecting heat signatures or analyzing atmospheric conditions. For example, infrared long-pass filters are used in thermal imaging to block visible light and transmit only infrared radiation. - Laser Systems
In laser applications, long-pass filters are used to remove unwanted shorter wavelengths from the laser beam, ensuring that only the desired wavelengths reach the target. This is particularly important in precision laser cutting, engraving, and medical laser treatments. - Consumer Electronics
Long-pass filters are integrated into devices such as cameras and smartphones to improve image quality by reducing haze and improving color accuracy. They are also used in displays to block harmful blue light and protect the user’s eyes. In home beauty devices, long-pass filters can also be used for photorejuvenation, hair removal, and spot lightening. - Astronomy
In astronomical observations, long-pass filters are used to isolate specific wavelengths of light from stars, planets, or other celestial bodies. For example, they can block shorter wavelengths from urban light pollution while transmitting desired infrared or red light from distant objects.
Advantages of Long-Pass Filters
High Precision: Long-pass filters are designed to provide sharp cutoff transitions, ensuring accurate wavelength separation.
Durability: They are made of high-quality materials that resist environmental factors such as humidity and temperature changes.
Versatility: Longpass filters have a wide range of cut-off wavelengths and can be customized to meet specific application requirements.
Enhanced Performance: By blocking unwanted wavelengths, they can improve the performance and accuracy of optical systems.
As a result, longpass filters are an indispensable tool in modern optics, allowing for precise control of light wavelengths in a wide range of applications. From scientific research and medical imaging to consumer electronics and environmental monitoring, their versatility and reliability make them a key component in advancing technology and improving our understanding of the world.
