Interference filter is an important device in optical technology. It uses the interference effect of light waves to selectively transmit or reflect specific wavelengths within the spectral range. With its high-precision and high-efficiency optical performance, it plays an irreplaceable role in scientific research, industrial manufacturing, medical health and consumer electronics.

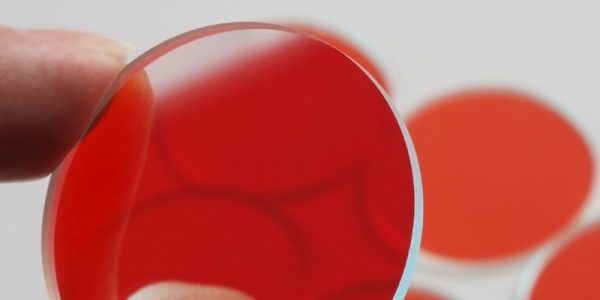

Definition of interference filter
Interference filter is an optical device that controls light through the principle of thin film interference. It is mainly composed of multiple layers of thin film materials with different refractive indices. By designing the thickness and refractive index of these films, light is reflected and interfered between different interfaces, thereby achieving the transmission or reflection of light of a specific wavelength.
Unlike traditional absorption filters, interference filters do not rely on materials to absorb light, but separate spectral bands through the interference effect of light. Therefore, it has significant advantages in transmission efficiency and spectral selectivity.
Working principle of interference filter
The core principle of interference filter is “thin film interference effect of light”. When light passes through the interference filter, it will be reflected and interfered multiple times in the multilayer structure of the thin film, and the superimposed light waves will produce constructive interference or destructive interference according to the different wavelengths.
Analysis of key principles:
- Constructive interference: For wavelengths that meet the interference conditions, the peaks and troughs of the reflected light and the transmitted light overlap, producing an enhancement effect, allowing the light of this wavelength to pass through the filter.
- Destructive interference: For wavelengths that do not meet the interference conditions, the peaks and troughs of the reflected light and the transmitted light cancel each other out, forming a weakening effect, and thus being blocked.
Interference conditions
The design of interference filters adjusts the number of film layers, thickness and refractive index to meet the optical path conditions of a specific wavelength, so that the wavelength passes or is reflected. These conditions are usually closely related to the film thickness d, the incident angle θ of the light and the wavelength λ, and are described by the following formula: 2ndcosθ=mλ
Where:
- n: refractive index of the film material
- d: film thickness
- θ: angle between the incident light and the film normal
- m: interference order (integer)
-λ: transmission wavelength
Structure and characteristics of interference filters
Typical structure
- Dielectric multilayer film: The core part of the interference filter is composed of dozens or even hundreds of dielectric films. These thin film materials usually use mediums with high refractive index and low refractive index stacked alternately (such as silicon dioxide, aluminum oxide, titanium dioxide, etc.).
- Substrate material: The filter usually uses optical glass, quartz or other transparent materials as the substrate to support the thin film structure and provide mechanical strength.
- Protective film: In order to improve the durability of the filter, the outer layer is usually covered with a protective film to prevent the influence of environmental humidity, oxidation or scratches on the filter.
Main features
High transmittance: It has a transmission efficiency of more than 90% for the target wavelength.
High cutoff rate: Light of non-target wavelengths is strongly reflected or absorbed, and the suppression rate usually reaches OD4 or OD6 (optical density).
High spectral accuracy: The wavelength selectivity is extremely strong, especially the narrow-band filter, which can distinguish the wavelength difference at the nanometer level.
Low energy loss: Compared with the absorption filter, the energy loss is small.
Types of interference filters
According to their functions and uses, interference filters can be divided into the following categories. It should be noted that the following categories must be made using the principle of interference to be considered interference filters. The following only shows the general classification!
- Bandpass filter (generally refers to broadband filter)
Function: Allow light in a specific wavelength range to pass through while blocking other wavelengths.
Application: Used in spectral analysis, laser diagnosis, medical imaging and other fields. - Narrowband filter
Function: Only pass a very narrow range of wavelengths (usually within a few nanometers).
Application: Gas detection, laser measurement, monochromatic light analysis in astronomy. - Longwave pass filter
Function: Pass light above a certain wavelength and block shortwave light.
Application: Night vision equipment, optical communication wavelength separation. - Shortwave pass filter
Function: Pass light below a certain wavelength and block longwave light.
Application: UV optical detection, ambient light sensor. - Dichroic Filters
Function: Separate light into two or more bands.
Application: Multi-wavelength imaging, fluorescence microscopy, optical communication.
Application fields of interference filters
Interference filters are widely used in the following fields due to their excellent spectral control capabilities:
- Scientific research
- Used in spectrometers, astronomical telescopes and other equipment to help researchers distinguish and analyze light signals in different bands.
- In astronomy, narrowband filters are used to detect specific element spectral lines in nebulae.
- Medical and life sciences
- Fluorescence microscopes use interference filters to select excitation light and fluorescence wavelengths to improve detection sensitivity and resolution.
- In biosensing, filters are used to analyze the response of molecules in samples to specific wavelengths.
- Industry and manufacturing
Wavelength selection and power control in laser processing and laser welding equipment.
Optical detection systems use filters to filter stray light and improve detection accuracy. - Consumer electronics
Infrared cutoff filters in smartphones and cameras improve image quality.
Multilayer interference filters are used to optimize optical display performance in AR/VR devices. - Communication and laser systems
- Wavelength division multiplexing and demultiplexing in optical fiber communication, using interference filters to achieve multi-channel wavelength division.
- Accurately filter out stray light in laser rangefinders and radar systems.
Future development of interference filters
With the continuous advancement of optical technology, interference filters still have great development potential in the following aspects:
- High precision: achieve narrower band and higher OD value filters, and provide more accurate spectral selection for astronomy and life sciences.
- Miniaturization and integration: In consumer electronic devices, filters need to be more closely integrated with optical lenses and sensors.
- High durability: Develop high temperature resistant and corrosion resistant materials to meet industrial and military needs in extreme environments.
Interference filters play a core role in optical technology with their unique spectral selection ability and efficient energy utilization. From basic scientific research to high-tech equipment, it provides strong support for the performance optimization of modern optical systems. With the continuous iteration of technology, interference filters will surely show irreplaceable value in more fields.
